| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Pushbutton |
| Current Rating | 2 A |
| Includes | Kit Includes Part #1180-01-2A(Allied Part #70128751) |
| Mounting Type | Snap-In |
| Number of Poles | 1 Pole |
| Series | |
| Termination | Screws |
| Type | Thermal |
| Voltage Rating | 250VAC / 72VDC |
Overview

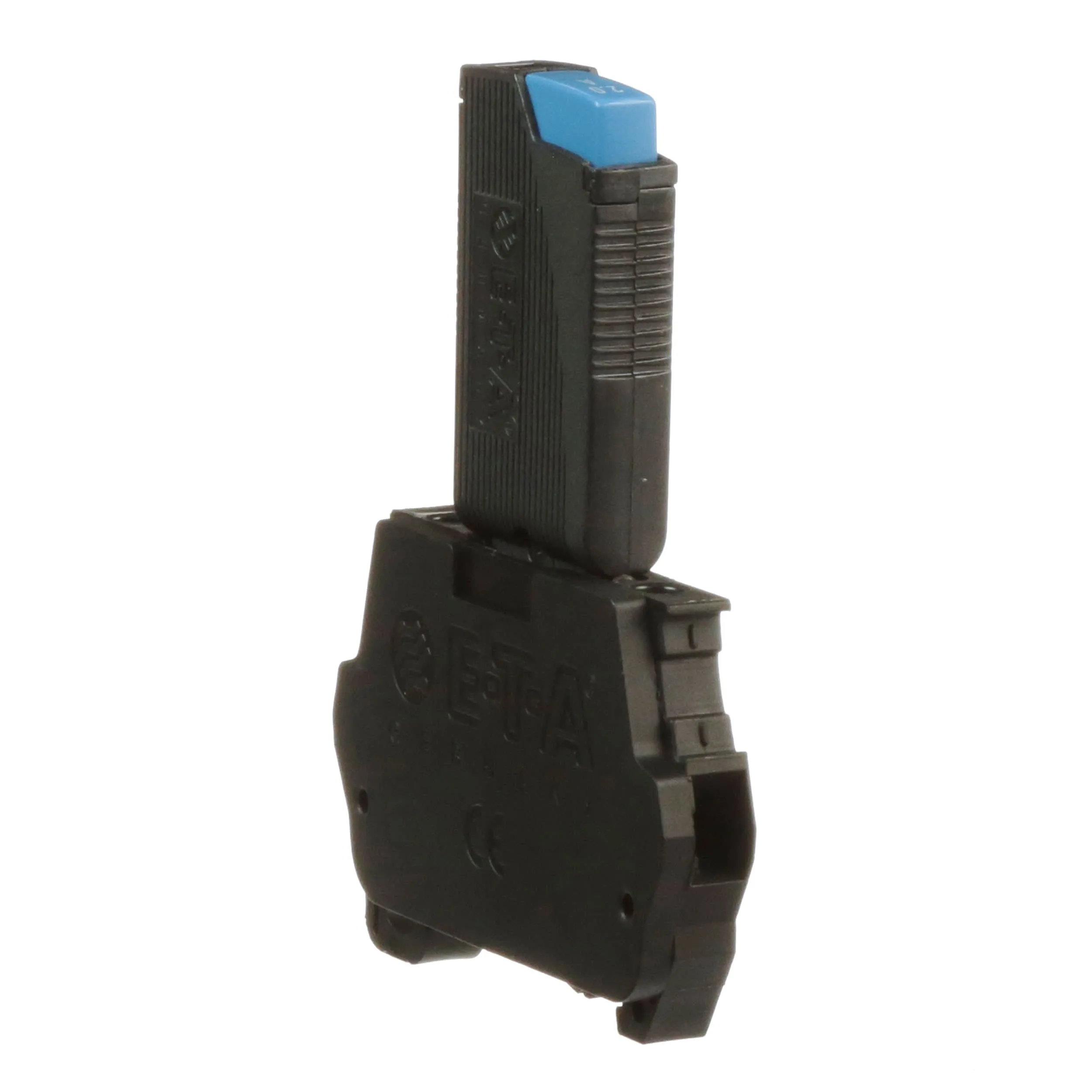

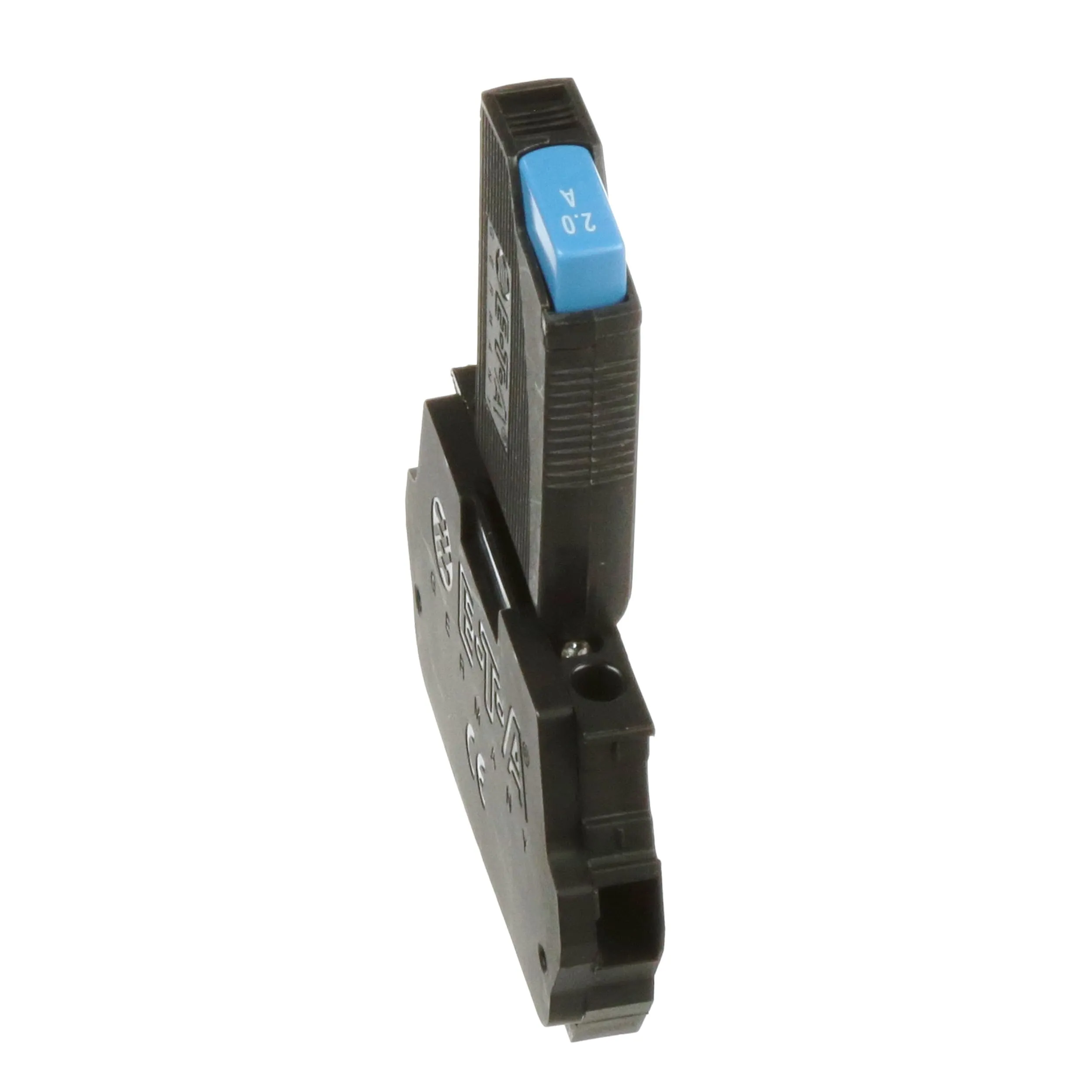

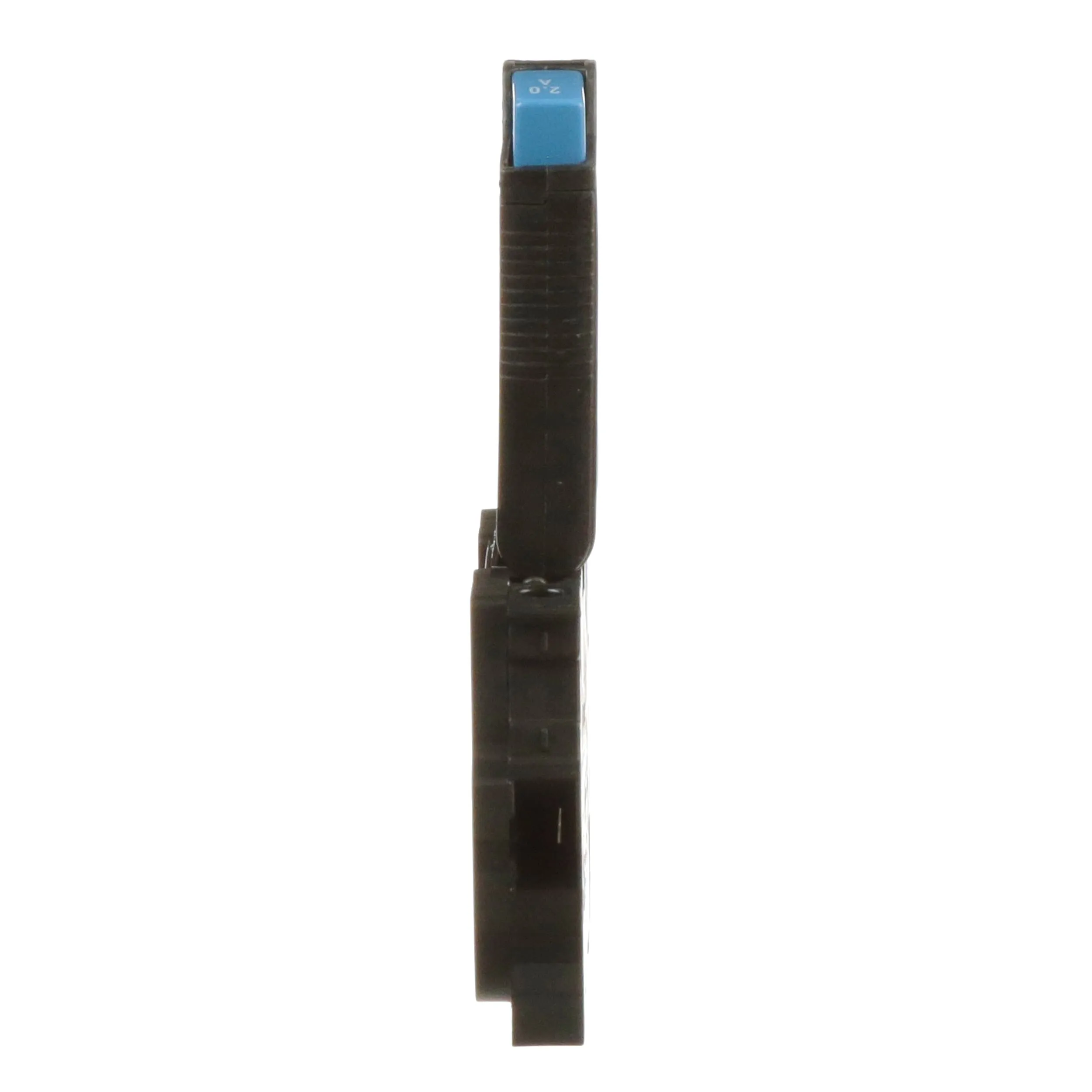

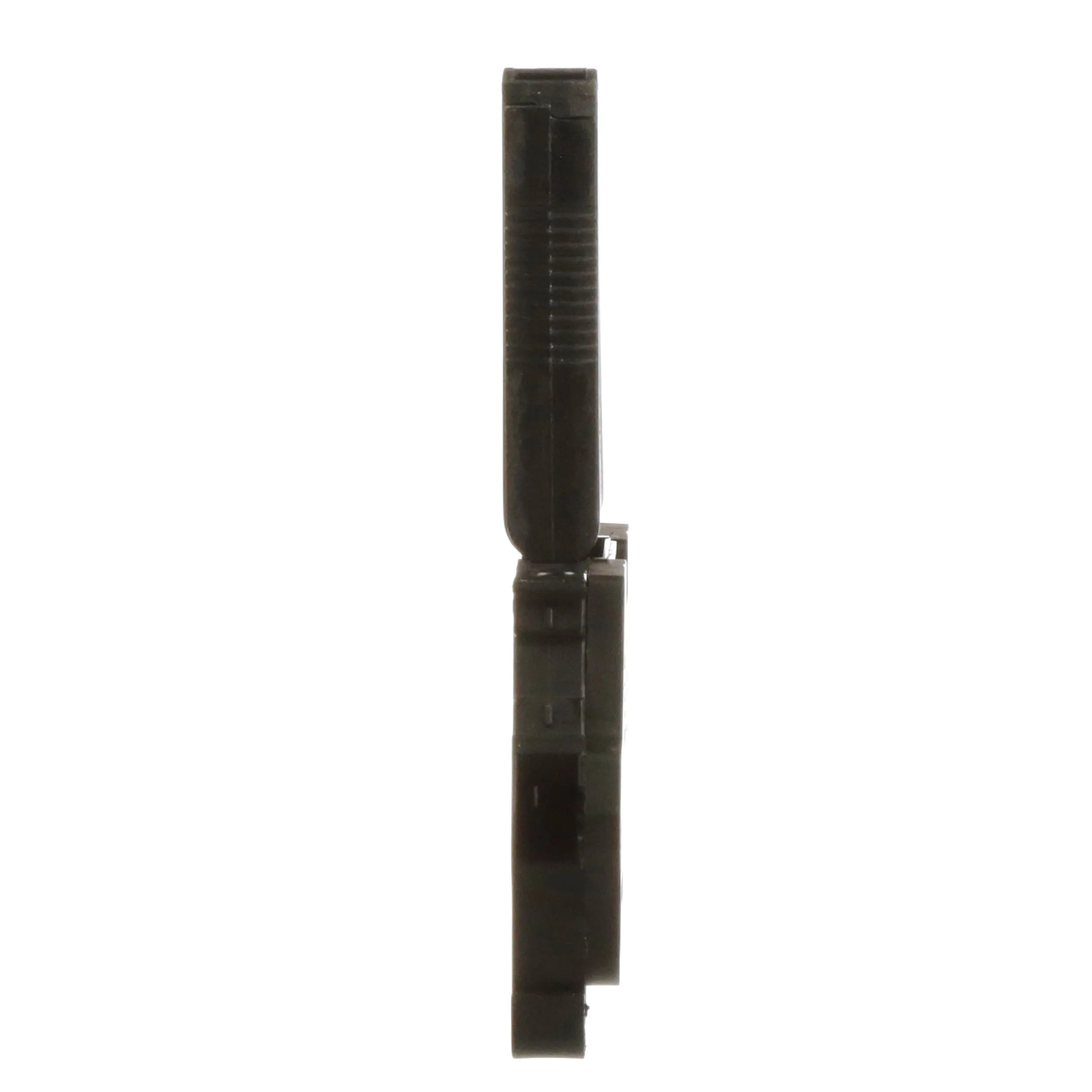

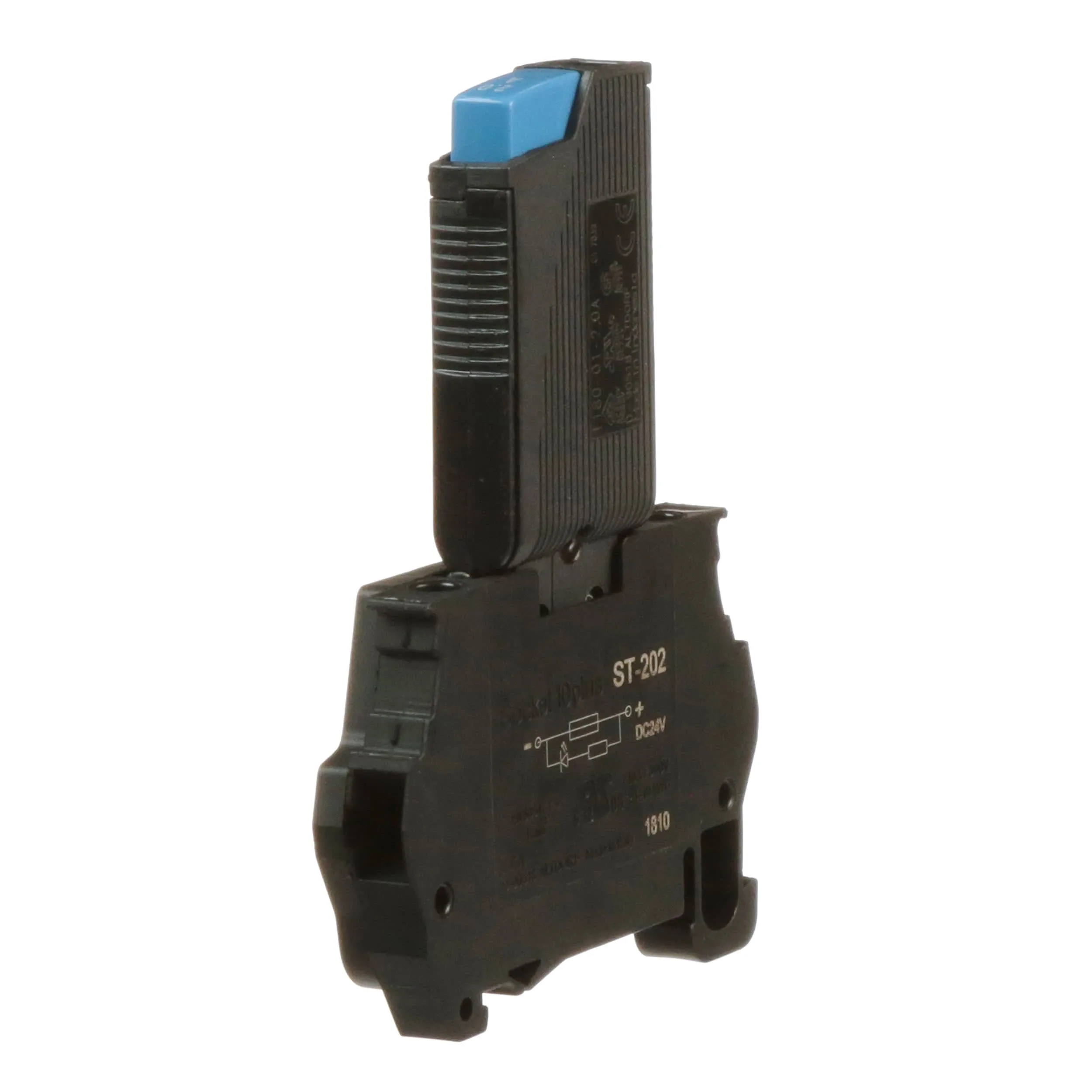

E.T.A 1180 Circuit Breaker Module 10Plus Terminal Block Kit — Miniaturised Single Pole Thermal Circuit Breaker with Switching Function Optional:
The 1180 is a miniaturised single pole thermal circuit breaker which has a reliable snap-action and trip free mechanism with switching function optional (push-push actuation). Cost-effective circuit breaker terminal block alternative for replacing fuses. Approved to Ul1077, C22.2 No 235 and EN/IEC 60934. Blade terminals fit directly into the 10Plus socket that offers push-in or screw terminals and optional 24 VDC LED indicator.
The E-T-A thermal circuit breaker type 1180 reduces stoppages and downtime. In combination with a modular style terminal block the circuit breaker offers individual protection for every circuit. Fuse replacement, with all its associated difficulties, is obviated as the circuit breaker can be immediately reset after operation. During maintenance and servicing it can also be manually switched off to disconnect the circuit. As the circuit breaker does not need to be removed from the terminal block to achieve this, there is no risk of it being mislaid. The terminal blocks are available with screw terminals or spring-loaded terminals. If visual indication of the tripped/off condition is required, terminal blocks with LEDs are available to illuminate when the circuit breaker is tripped/off. A special 34 A rated bus or 32 A jumpers are available for the screw terminal or spring-loaded terminal block versions respectively.
1180 Kit Features:
Module 10Plus Features:
Applications:
