Summit Commercial 24" Built-In Automatic Defrost Beverage Fridge SCR600BGLBIHV Overview

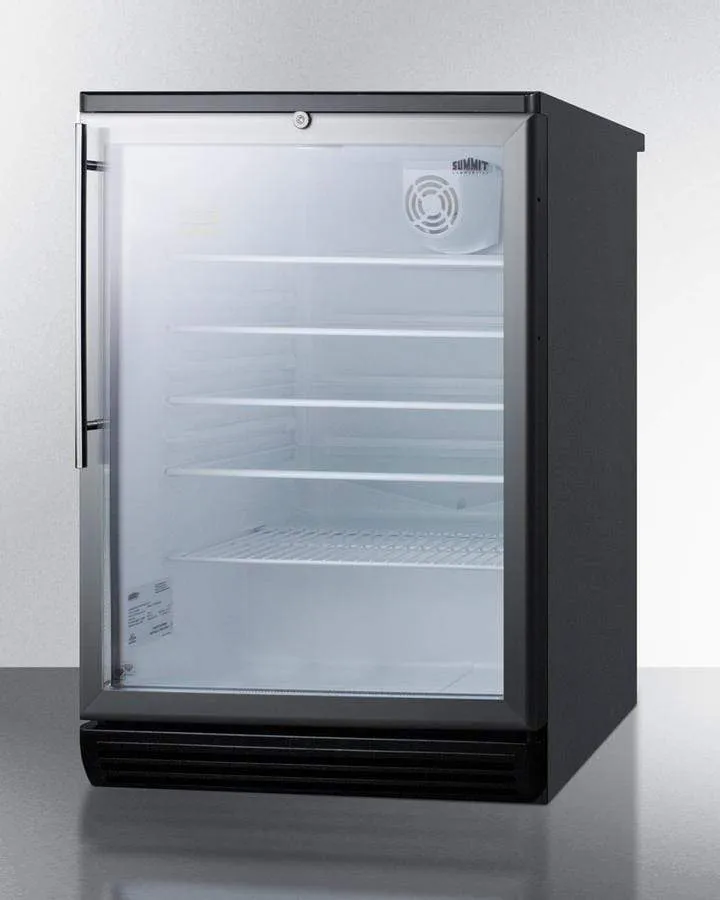

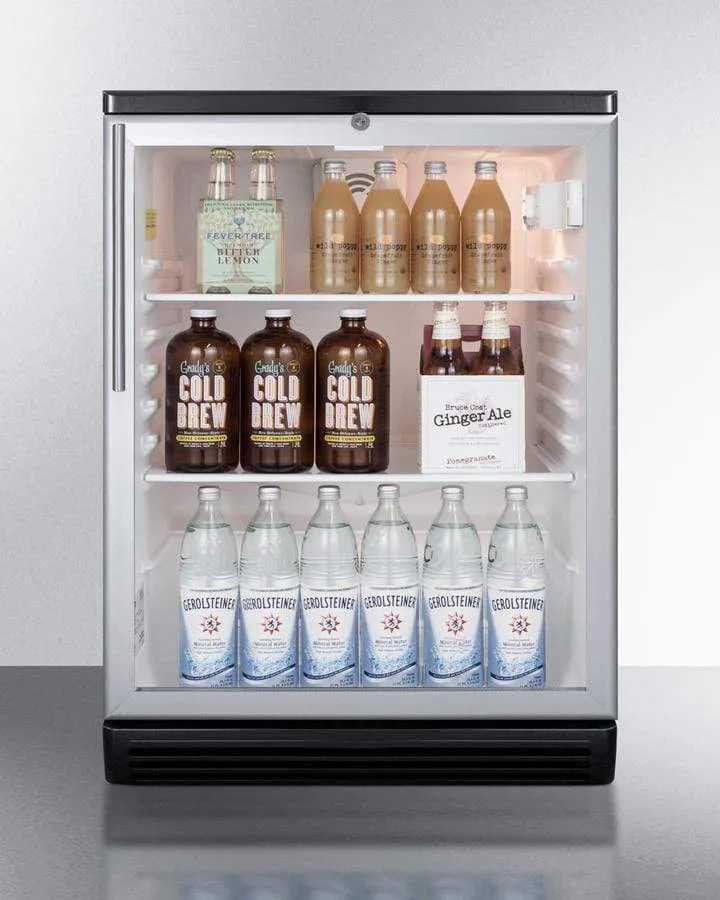

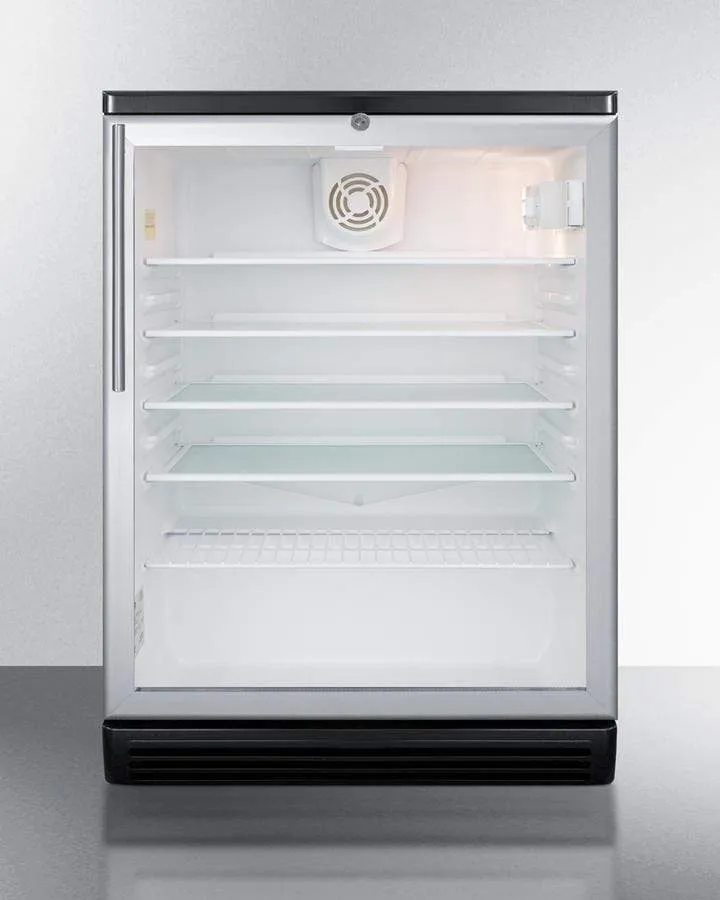

SUMMIT COMMERCIAL's SCR600BGLBI Series features 24" wide beverage refrigerators designed and manufactured in Europe for built-in undercounter installation in commercial settings. Sized with a convenient 24" footprint and generous 5.5 cu.ft. interior, the SCR600BGLBIHV features a front-breathing design for built-in installation under counters, with a fully finished black cabinet that also allows freestanding use. The door features double pane tempered glass for added protection, with a brushed aluminum finish on the frame. We include our "HV" style handle in a thin 14mm diameter and brushed stainless steel finish. The factory-installed front lock is located towards the top of the door for easier access. Inside, the SCR600BGLBIHV includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom. The SCR600BGLBIHV is ETL-S listed to NSF-7 commercial standards. For this unit sized at 32" for use under lower ADA compliant counters, see the SCR600GBLBIADA series.
FEATURES
- Commercially approved
- ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
- Slim undercounter dimensions
- Less than 24 inches wide to fit tight spaces
- Built-in capable
- Front-breathing design allows you to install the unit under counters with minimum clearance
- Double pane tempered glass door
- Heat resistant design provides clear display to promote impulse buys
- Professional handle
- Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry
- Factory installed lock
- Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Automatic defrost
- Reduced user maintenance with automatic defrost
- Internal fan
- Fan-forced cooling helps to maintain a more evenly cooled interior
- White interior finish
- Interior offers more visibility with a brighter look
- Adjustable glass shelves
- Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Half-sized wire shelf
- Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
- Interior light on rocker switch
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- Hidden evaporator
- SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
- One piece interior liner
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Adjustable thermostat
- Dial thermostat for easy and intuitive temperature management
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
SPECIFICATION
| Overview |
| Height of Cabinet |
33.5" (85 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.5" (65 cm) |
| Depth with door at 90° |
46.0" (117 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
1.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
105.0 lbs. (48 kg) |
| Estimated Time to Ship |
2 to 4 days |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Refrigerator Features |
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
1 |
| Shelf Type |
Glass |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.67oz. |
| High Side PSI |
124.0 |
| Low Side PSI |
30.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Dimensions |
| Interior Height |
26.0" (66 cm) |
| Interior Width |
20.75" (53 cm) |
| Interior Depth |
17.5" (44 cm) |
| Compressor Step Height |
6.0" (15 cm) |
| Compressor Step Width |
20.75" (53 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
TT - Installed thermometer |
| PH - Probe Hole |
Legs to raise unit height |
| DT - Digital thermostat |
CAS6 6" casters |
| CAS3 3" casters |
Alarm |
| Extra key |
SCD - Self-closing door |
| LHD - Left hand door swing |
Latch for door |
| SSK |
HUM - Humidity sensor |
| HG - Hospital grade cord |
DL1 - Factory installed data logger |
| Red DT - Digital thermostat for red wine |
TH - Installed thermometer |
| ODA - Open door alarm |
DL2 - Factory installed NIST calibrated data logger |
|
| Handle |
|
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
| Interior |
| LockBox24 - Interior locking compartment |
|
WARRANTY
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
